Industrial corrosion compromises structural integrity daily. It leads to heavy remediation costs and severe safety liabilities for facility managers. Protecting steel assets from harsh environmental elements requires scientifically proven intervention. Hot-dip galvanizing (HDG) remains the industry standard for new steel fabrication. However, repairing damaged HDG in the field poses massive logistical challenges. Protecting existing infrastructure requires a field-applied solution. This solution must offer genuine sacrificial protection, not just a superficial barrier. A simple coat of grey paint cannot stop galvanic corrosion on load-bearing steel.

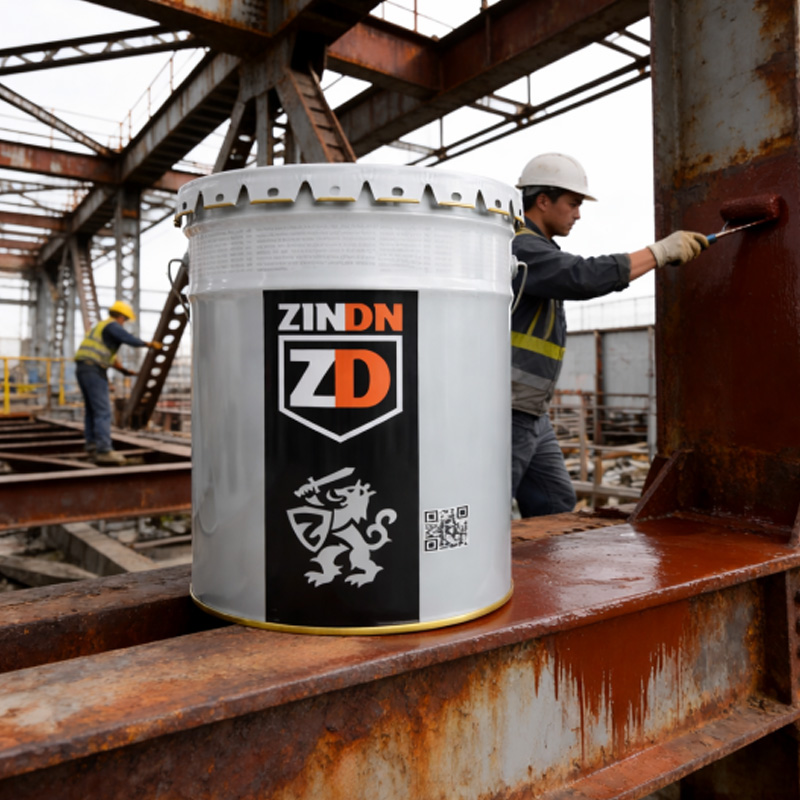

Galvanizing Paint bridges this operational gap. It acts as an engineered coating explicitly designed to replicate the cathodic protection of HDG. To ensure long-term asset protection and maximum return on investment, engineering teams must evaluate these coatings properly. You must verify composition profiles, specify binder types, and enforce strict surface preparation requirements before application.
True galvanizing paint must contain a high percentage of metallic zinc dust (typically >92% in the dry film) to provide active cathodic (sacrificial) protection, distinguishing it from standard barrier paints.
The primary industrial use case for cold galvanizing paint is the field repair of damaged hot-dip galvanized steel, strictly governed by standards like ASTM A780.
Coating failure is rarely a material defect; it is overwhelmingly driven by improper surface preparation (lack of profile or contamination) or failure to continuously agitate the heavy zinc suspension during application.
Evaluating total cost of ownership (TCO) requires balancing the higher upfront cost of premium zinc galvanizing coatings against significantly extended maintenance intervals and lifecycle sustainability.
Industry professionals widely refer to this material as a cold galvanizing compound. It is a specialized zinc-rich coating formulated to protect steel from galvanic corrosion. It looks similar to standard architectural paint in the can. However, it functions entirely differently. It acts as an active electrochemical shield rather than a passive plastic wrap over the steel.
Three primary components dictate the performance of this heavy-duty coating system. First, ultra-pure zinc dust acts as the active ingredient. Manufacturers mill these zinc particles to specific micron sizes. They use either spherical or flake-shaped dust. This strict sizing ensures maximum electrical conductivity between the individual particles and the steel substrate. The zinc must meet ASTM D520 standards for purity.
Second, the formulation requires an organic or inorganic binder. The binder acts as the structural resin. It holds the heavy zinc particles to the substrate. It encapsulates the zinc just enough to adhere to the steel. However, it leaves the zinc particles exposed enough to conduct electricity. Binders include silicates, epoxies, and polyurethanes.
Finally, a solvent or carrier agent controls the application viscosity. Common solvents include xylene or methyl ethyl ketone. The solvent flashes off rapidly during the curing process. Once the solvent evaporates, the zinc dust and binder lock together tightly against the roughened steel surface.
You must understand the exact bonding sequence to prevent coating failures. Hot-dip galvanizing relies on a complex metallurgical bond. Steel is submerged in molten zinc around 830°F (443°C). The iron reacts with the zinc to form distinct Gamma, Delta, Zeta, and Eta alloy layers. These layers become an integral part of the steel itself.
Cold galvanizing relies strictly on a mechanical bond. It follows a precise physical sequence:
Abrasive blasting creates a jagged micro-profile across the bare steel surface.
The liquid coating wets the substrate and flows into the microscopic valleys.
Solvents evaporate into the atmosphere during the initial drying phase.
The binder matrix shrinks and tightens directly around the heavy zinc particles.
The cured resin mechanically locks onto the jagged steel peaks.
Electroplating represents a third method. It uses an electrical current to deposit a very thin layer of zinc onto steel. Electrogalvanized coatings mostly protect indoor automotive or appliance parts. Industrial paint offers much higher potential dry film thicknesses (DFT). This makes paint highly suitable for heavy industrial use compared to thin electrogalvanizing.
The electrochemistry of the Galvanic Series explains how this protection mechanism operates. Different metals possess different electrochemical potentials. When two dissimilar metals connect in the presence of an electrolyte, a galvanic cell forms. One metal becomes the anode and corrodes. The other becomes the cathode and remains protected.
| Metal / Alloy | Voltage Potential (V) | Anodic Status |
Magnesium | -1.75 | Highly Anodic |
Zinc | -1.25 | Anodic (Sacrificial) |
Aluminum | -0.95 | Mildly Anodic |
Carbon Steel | -0.85 | Cathodic (Protected Base) |
Zinc acts as the anode. Steel acts as the cathode. Moisture in the air acts as the necessary electrolyte. Because zinc sits lower on the galvanic series than steel, it remains more electrochemically active. The Zinc galvanizing coating willingly sacrifices its own electrons to the steel. The zinc corrodes entirely before the steel can begin to rust.
Zinc possesses a unique characteristic known as throw power. This represents its ability to protect adjacent bare steel. The electrical current travels through the moisture to protect the exposed cathode. High-quality zinc coatings can effectively protect exposed edges or scratches up to roughly a quarter inch wide. Standard barrier paints cannot achieve this. If a standard barrier paint scratches, moisture immediately causes aggressive under-film corrosion.
As the zinc sacrifices itself, a secondary working principle engages chemically. The anodic reaction changes the zinc at a molecular level. The metallic zinc reacts with oxygen to form zinc oxide. The oxide reacts with water to form zinc hydroxide. Finally, the hydroxide reacts with carbon dioxide in the air.
This final reaction forms zinc carbonate. Zinc carbonate is a dense, insoluble barrier. It forms a tightly adherent patina over the entire steel surface. This dual-action mechanism provides active sacrificial protection first. It then follows up with dense passive barrier protection. This specific sequence significantly outlasts standard anti-rust paints in harsh environments.
Hot-dip galvanized coatings often suffer damage during structural fabrication. Welding, cutting, drilling, or transport impacts routinely expose the bare steel underneath. Leaving these small areas exposed eventually compromises the entire structural section. You must deploy Galvanized steel paint to arrest this degradation immediately.
Standard practices dictate precisely how to repair damaged HDG coatings. ASTM A780 serves as the global regulatory benchmark. It specifically outlines the acceptable use of zinc-rich paints for field repair. The standard emphasizes strict DFT requirements. Applicators must follow a rigid process to maintain compliance:
Remove all welding slag, flux, and spatter from the repair zone.
Clean the damaged area using power tools to reach bare, bright metal.
Verify the ambient temperature aligns with the manufacturer data sheet.
Apply the coating to achieve a thickness greater than the original hot-dip layer.
Overlap the repair material onto the surrounding intact galvanizing by at least half an inch.
A780 generally requires the repair coating thickness to measure 1.5 to 2.0 times the thickness of the surrounding undamaged layer. This often results in a minimum of 2.0 to 3.0 mils DFT for the repair spot. Applying a thin, single coat of aerosol paint rarely meets this specification.
Using Cold galvanizing paint as a standalone system is highly effective. Many use cases exist where traditional HDG remains physically impossible. You cannot dip existing suspension bridges, large structural retrofits, or towering transmission lines into a molten zinc kettle. Highly complex fabricated geometries may also warp severely under the extreme heat of hot-dip processing.
In aggressive ISO C4 or C5 corrosive environments, single coatings often fail prematurely. Here, engineers mandate zinc-rich paints as a primer within a duplex system. A duplex system combines the cathodic protection of a zinc primer with the barrier protection of epoxy and polyurethane topcoats. The topcoats seal the zinc from rapid environmental consumption. This extends the lifespan of the entire system exponentially on offshore platforms and chemical plants.
You must correlate the percentage of zinc in the dry film directly to the duration of cathodic protection. The more pure zinc present on the dried surface, the longer the galvanic protection lasts. The particles must touch each other to conduct electricity.
Be cautious of deceptive marketing language. Many products tout high zinc content by weight or volume before application. Solvents make up a large portion of the wet volume in the can. Establish greater than 90 percent zinc in the dry film as your baseline metric for heavy-duty industrial application. Lower percentages act merely as barrier paints. They do not contain enough particle-to-particle contact to sustain electrical conductivity.
The type of resin used dramatically affects application conditions and final field performance. Engineers generally divide binders into two broad categories: inorganic and organic.
| Feature | Inorganic Zinc-Rich (IOZ) | Organic Zinc-Rich (OZ) |
Binder Base | Alkali silicates or alkyl silicates. | Epoxies, polyurethanes, alkyds. |
Temperature Resistance | Superior heat resistance. Tolerates up to 400°C (750°F). | Moderate heat resistance. Typically fails above 120°C (250°F). |
Surface Preparation | Requires absolute perfection. White metal blast mandatory. | More forgiving. Adheres well to marginally prepared surfaces. |
Flexibility & Field Use | Brittle. Prone to mud-cracking if applied too thick. | Highly flexible. Better suited for complex field environments and topcoating. |
Galvanic Action Speed | Rapid galvanic action. Faster conductivity onset. | Slower initial action. Binder slightly insulates zinc initially. |
Select IOZ for extreme high-temperature environments. It also performs exceptionally well on friction-grip structural steel connections. Conversely, select an OZ formulation, particularly an Epoxy Zinc-Rich Primer, for general field application. Organic options simplify bridge maintenance and ease the topcoating process.
A major operational challenge exists when using Anti-corrosion galvanizing paint. Pure zinc dust is exceptionally heavy. It settles rapidly at the bottom of the can or spray pot. Continuous, mechanical agitation is strictly mandatory during application. Crews must use pneumatic Jiffy mixers in the paint pot. Without continuous stirring, the applicator will spray pure solvent at the top of the batch. They will then hit a block of solid zinc at the bottom. This causes wildly uneven zinc distribution and localized coating failures.
Zinc-rich paints often have significantly shorter shelf lives. They frequently require two-component mixing immediately prior to application. Moisture-cured urethanes remain highly sensitive to ambient humidity once opened. Plan site inventory accordingly to avoid costly material spoilage.
Environmental and regulatory constraints strictly govern heavy industrial coatings. Assess local EPA or REACH directives regarding volatile organic compounds. High-solvent paints release harmful emissions as they cure. Standard industrial maintenance coatings often must remain below 340 grams per liter of VOCs.
Zinc is an infinitely recyclable element. It occurs naturally in the environment. However, specifying low-VOC, high-solids formulations improves the overall lifecycle impact of the project. It protects both the structural asset and the surrounding ecosystem simultaneously.
The most common cause of coating failure is premature delamination. This occurs entirely due to mechanical bond failure. If the steel remains too smooth or contaminated, the heavy zinc paint will simply peel off in thick sheets under its own weight.
Abrasive blasting represents an absolute necessity. Standard practice requires SSPC-SP 10 Near-White Metal Blast Cleaning. You must remove all mill scale, rust, and old paint. Furthermore, blasting must create a jagged surface profile. Inspectors use Testex replica tape to measure the physical depth of this blast profile. They press the tape into the steel. A specialized micrometer then reads the impression depth. This profile needs to measure 1.5 to 2.5 mils deep. The binder needs these microscopic peaks and valleys to physically grip the steel substrate.
Applying coatings in uncontrolled outdoor environments invites flash rusting or complete binder failure. You must define rigid acceptable parameters for application.
Monitor ambient air temperature constantly during application.
Measure relative humidity to ensure it stays below manufacturer maximums.
Calculate the dew point using a sling psychrometer.
Ensure the physical steel substrate temperature remains strictly 5°F (3°C) above the dew point.
If the steel temperature drops, microscopic moisture condenses on the surface. You cannot see this moisture. Painting over it guarantees catastrophic adhesion failure. Flash rust destroys the necessary mechanical bond instantly.
Post-application fabrication introduces severe occupational hazards and quality defects. Welding directly over zinc-rich coatings vaporizes the zinc at around 1650°F (900°C). This rapid vaporization causes severe weld porosity. It physically weakens the structural joint.
You must remove the galvanizing paint prior to welding. Grind the coating back at least two inches from the intended weld zone to ensure absolute weld integrity. Proper ventilation and personal protective equipment are mandatory. Inhaling vaporized zinc causes metal fume fever. This occupational condition gives technicians severe chills, high fever, and nausea. Always re-apply the zinc coating to the bare weld after the steel fully cools.
Facility managers must frame the Total Cost of Ownership model accurately. Standard alkyd paints are significantly cheaper per gallon. They are easier to apply with minimal surface preparation. However, they require complete recoating every few years in industrial environments. True galvanizing paint requires higher initial material costs. It also demands expensive abrasive surface preparation.
The return on investment becomes glaringly obvious over time. A properly applied zinc-rich duplex system can extend asset life by decades before requiring major maintenance. This drastically reduces the lifecycle cost of the structure.
| Metric | Standard Alkyd System | Zinc-Rich Duplex System |
Surface Preparation | Hand tool cleaning (SSPC-SP 2) | Abrasive blasting (SSPC-SP 10) |
Initial Material Cost | Low | High |
Repaint Interval | 5 to 7 years | 20 to 25 years |
30-Year Labor Cycles | 4 to 5 times | 1 to 2 times |
30-Year TCO | Extremely High | Low |
Material costs represent a tiny fraction of total maintenance budgets. Labor, scaffolding, staging, environmental containment, and facility downtime account for the vast majority of any coating project budget. Paying for scaffolding erection every five years drains operational capital quickly.
Extending the recoat cycle via zinc-rich coatings drastically reduces the annualized cost of facility maintenance. You pay the high labor and staging costs once. The structure remains heavily protected for decades. This establishes the true economic value of applied cathodic protection.
Execute the following actions to specify and implement a cathodic protection system effectively:
Consult with a NACE/AMPP certified coating inspector to evaluate your facility's specific environmental corrosivity category (e.g., C3, C4, C5).
Request exact technical data sheets (TDS) from manufacturers to verify the dry-film zinc percentage exceeds 90% before purchasing.
Audit your field maintenance teams to ensure they possess continuous agitation equipment and surface profile gauges for proper application.
Specify clearly in your maintenance contracts that all surface preparation must meet SSPC-SP 10 near-white metal standards.
A: Hot-dip galvanizing submerges steel in molten zinc. This creates a durable metallurgical bond with distinct alloy layers. Cold galvanizing paint applies via brush or spray at ambient temperatures. It forms a mechanical bond to roughened steel. HDG offers superior abrasion resistance. Cold galvanizing provides comparable cathodic protection and enables fast field repairs.
A: Yes. High-quality formulations stop rust through active cathodic protection. Zinc remains more anodic than steel. The zinc sacrifices itself to moisture and corrodes first. It also features throw power. This protects small scratches or exposed edges up to a quarter inch wide. Eventually, it forms an insoluble zinc salt barrier.
A: Yes, the industry calls this a duplex system. Applying epoxy or polyurethane topcoats over a zinc primer extends the lifespan significantly. You must apply a thin mist coat first. Zinc coatings remain highly porous. Applying a heavy topcoat directly traps air. This causes outgassing bubbles and severe adhesion failure.
A: No. Pure zinc-rich paints cure to a flat matte gray finish. They cannot naturally form the crystalline spangle of hot-dip galvanizing. To match shiny HDG for aesthetic purposes, you must apply specialized aluminum-pigmented cosmetic topcoats over the primer. These cosmetic topcoats do not provide primary cathodic protection themselves.
A: Lifespans depend entirely on the environmental corrosivity category and dry film thickness. In a mild rural environment, standalone zinc paint can last up to 25 years. In an aggressive marine environment, a standalone coat lasts 5 to 10 years. Duplex systems push marine lifespans back over 20 years.
A: You must remove all rust, mill scale, and chlorides. Standards require abrasive blasting to an SSPC-SP 10 Near-White Metal finish. The blasting media must create an angular surface profile measuring 1.5 to 2.5 mils deep. This jagged profile gives the heavy zinc paint a surface to mechanically lock onto.
A: Industry terminology uses them interchangeably. However, a strict formulation threshold exists. To qualify as a true cold galvanizing compound, the coating typically requires greater than 92 percent metallic zinc dust in the dried film. Paints with lower zinc percentages act merely as barrier coatings and fail to provide sacrificial protection.
