Repair Value-added Services Extend Asset Life

Pre-Construction Repair Preparation Steel Pretreatment:

Cannot be thoroughly sandblasted or shot-blasted like a new construction project. Often, only simple grinding and cleaning can be done, and the rust cannot be completely removed. In addition, the surface is greatly affected by the environment during construction, which can easily lead to adhesion problems and coating failure. Zindn can provide suitable solutions for steel pretreatment during maintenance.

Rust Treatment:

When repairing steel structures, the surface is usually severely corroded, and it cannot be thoroughly sandblasted or shot-blasted like a new construction project. Often, only simple grinding and cleaning can be done, and the rust cannot be completely removed. In addition, the surface is greatly affected by the environment during construction, which can easily lead to adhesion problems and coating failure.Zindn can provide suitable solutions for steel pretreatment during maintenance.

Part	Protection plan	Number of tracks	Thickness (μm)
Repair of steel structures in C5 corrosive environments (for surfaces difficult to remove rust)	Surface pretreatment	Remove loose rust and oil stains
	Water-based rust conversion primer	1	30
	Epoxy anti-rust primer	1	80
	Epoxy Mica Intermediate Coating	1	160
	Fluorocarbon topcoat/polysiloxane topcoat	1	80

Low Surface Treatment:
Generally, the higher the surface treatment grade, the stronger the adhesion of the paint film to the substrate. However, in reality, surface treatment is often unsatisfactory, failing to meet the requirements of sandblasting Sa2.5 grade and roughness. Environmental conditions also affect adhesion; high relative humidity can cause the following problems:
① Increased condensation on the substrate surface.

② Condensation leads to flash rust, causing coating failure.

③ Condensation on the substrate surface may cause blistering and delamination of the paint film. To address the coating failure issues that may arise due to the above substrate conditions, Zindn has launched a low surface treatment primer coating system solution. This solution's low surface treatment primer has low requirements for substrate preparation and is not sensitive to moisture on the substrate surface, effectively solving the problems that plague customers.

Part	Protection plan	Number of tracks	Thickness (μm)
Surfaces that cannot be completely cleaned of rust	Surface pretreatment	Polished to St3 grade
	Low surface treatment epoxy primer	1	80
	Epoxy Mica Intermediate Coating	2	160
	Fluorocarbon topcoat/polysiloxane topcoat	2	80

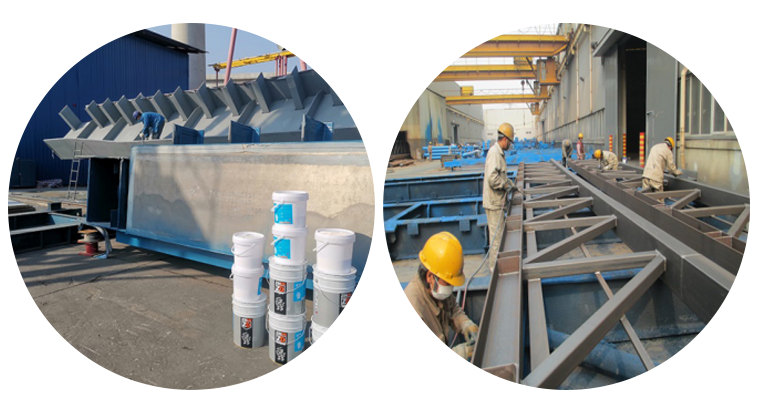

Repair and Construction Process

Zindn Repair and Construction Qualification

Zindn Repair and Construction Technical Service Personnel Qualifications

Maintenance Engineering Business Process

01. Project entry inspection
02. The inspection team provides preliminary anti-corrosion and construction plans
03. Plan communication and adjustment
04. Confirm the plan and entry

Value-added Services for Homeowners

ZINDN has a comprehensive service system that can be customized according to the requirements of owners and customers, and provide targeted anti-corrosion solutions based on different corrosive environments.

ZINDN provides high-performance, high-quality anti-corrosion coatings and professional one-stop technical services for bridges, industry, shipbuilding, marine engineering, petrochemicals, power, factory equipment, infrastructure and other fields.

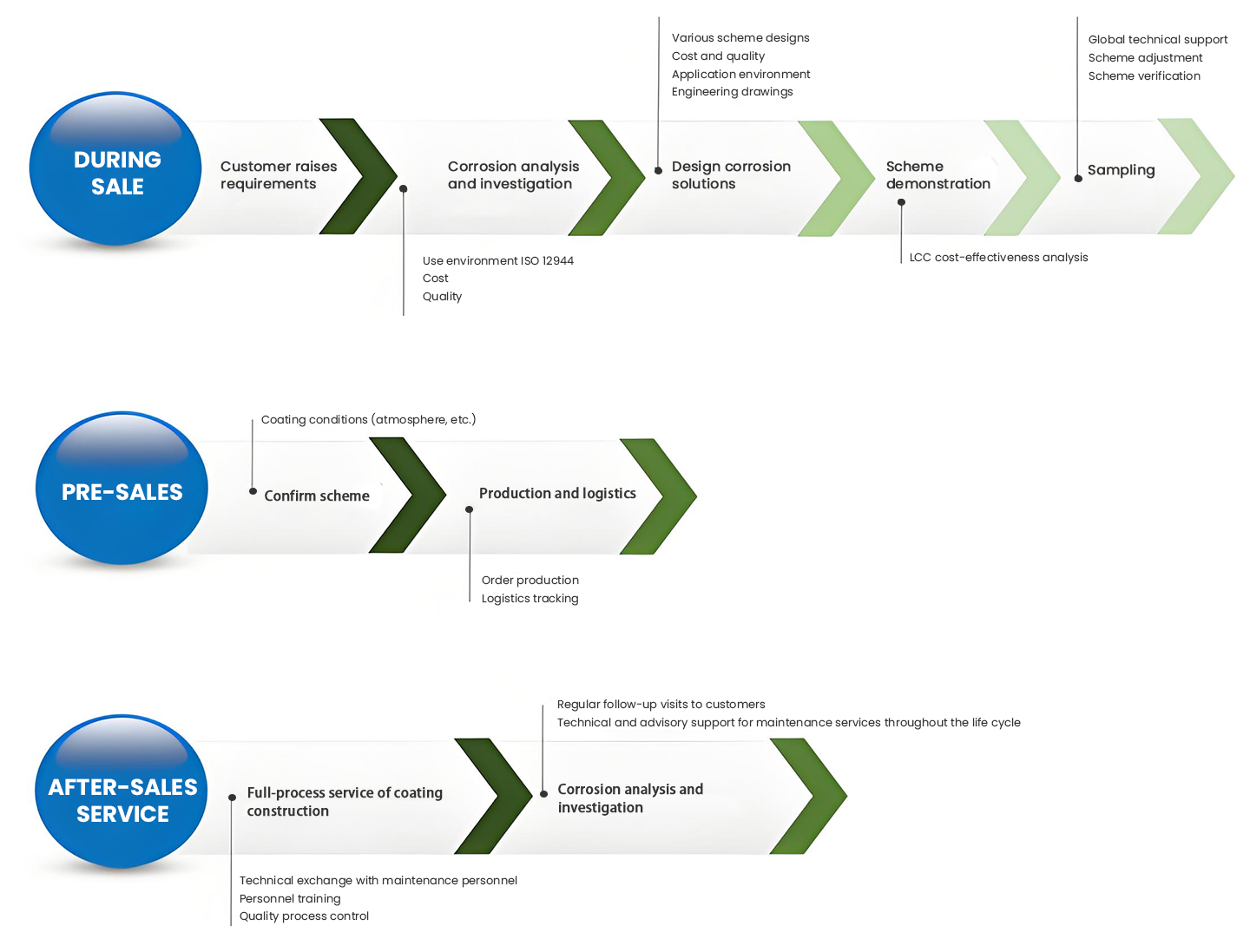

Integrated Construction & One-Stop Service Process

Other Value-added Services

Design Guidance Program
Project	Content
Quotation	Provide company product manuals, inspection reports, and company documents.
Scheme Design	Based on the design life, usage environment, and operating conditions provided by the user, a corresponding solution will be provided.
Process documents	Surface treatment, usage environment, and customized overall process documentation for the company.
Sample	A small number of samples are provided for user use.

Technical Service Projects
Project	Content
Environmental testing	Air temperature/humidity testing, testing standards and basis
	Substrate temperature, testing standards
	Dew point temperature, testing standards
