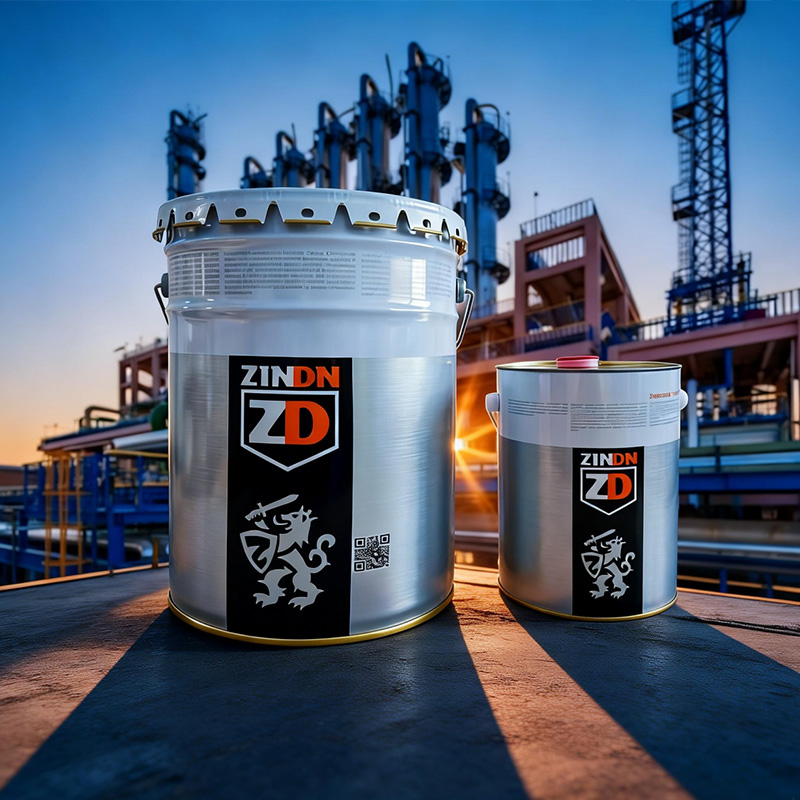

Epoxy Graphene Zinc ZD6310-Z850
ZD6310-Z850 is a two-component high solid content heavy-duty anti-corrosion coating composed of special modified resin, pure thin graphene, zinc powder, inorganic fillers, solvents, additives, etc.，
Advantages of Epoxy Graphene Zinc ZD6310-Z850
· The labyrinth effect is created by utilizing the flake structure of graphene to improve the density and crack resistance of the coating, while enhancing the cathodic protection of zinc dust, thus balancing environmental protection and long-term corrosion protection requirements
· High coverage rate, saving approximately 15% paint consumption compared to epoxy zinc-rich coatings
· It features mature and stable compatibility, high adhesion, and high tolerance for application defects
· The coating film exhibits outstanding corrosion prevention performance, making it a perfect replacement for conventional coatings such as epoxy zinc-rich paints.
Physical Constants
Item no | ZD6310-Z850 |
Zinc content | 30% |
Type | Two packs |
Color | Drak gray |
Gloss | Matt |
Volume solids % | 65 |
Solid by weight % | 80 |
Density % | 2 |
Recommended DFT | 40μm-120μm |
Theoretical coverage | 0.246kg/㎡ (80μm DFT) |
Touch-dry (press dry) | 30 mins (@25°C) |

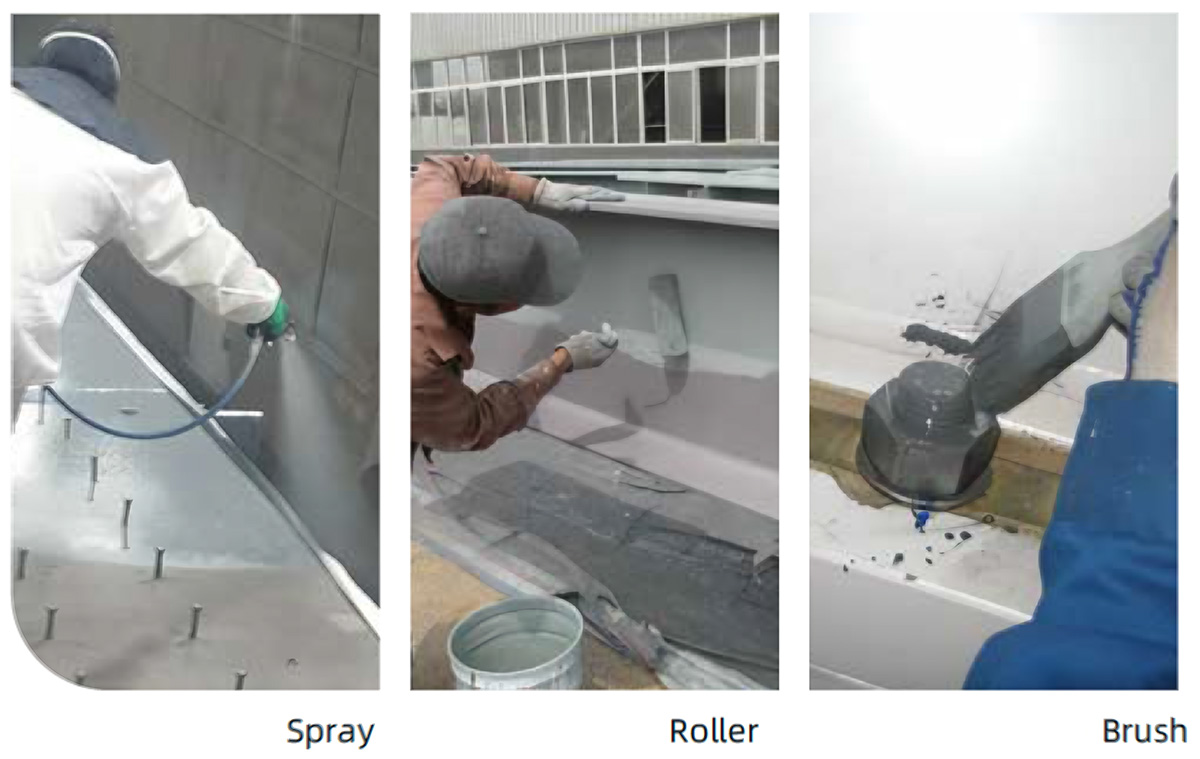

Application methods | Spray, Brush, Rolling |
Application conditions | Ambient temperature 5°C-38°C, humidity < 85% |
Shelf life | 2 years from manufacture date (unopened) |
Pot life | If closed correctly after use, it can still be used |
Pack | 35(32+3) kg/unit |
Dilute mixing ratio | 5%-15% |
Storage | In a cool and ventilated place |
MOQ | 500kgs |
Country of Origin | Jiangsu province, China |
Protective Systems
· Duplex system
ZD6310-Z850 (60μm-120μm) + Polyurethane/ Fluorocarbon/ Polysiloxane topcoat ((60μm-100μm)
· Triplex system
ZD6310-Z850 (60μm-120μm) +MIO Midcoat (60μm-160μm) +Polyurethane/ Fluorocarbon/ Polysiloxane topcoat ((60μm-100μm)
Applications Methods
